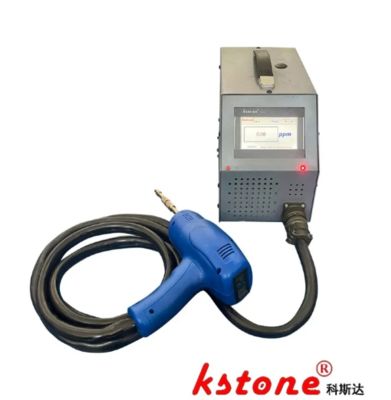

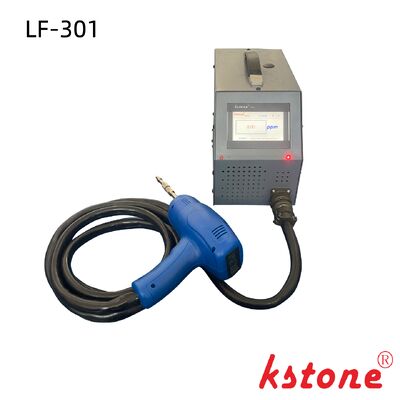

SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]

  • SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]
원래 장소 상하이
브랜드 이름 KSTONE
인증 ISO9000
모델 번호 LF-301
최소 주문 수량 1
가격 $25000-$26000
포장 세부 사항 상자 / 나무 상자
배달 시간 30 일
지불 조건 t/t
공급 능력 연간 1000

Contact me for free samples and coupons.

왓츠앱:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
제품 상세 정보
측정 범위 0.01ppm -10000ppm 정확성 0.01ppm
민. 결의안 0.01ppm 검출기의 가스 및 전기 통합 호스 표준 길이는 3 미터입니다 (필요에 따라 최대 10 미터)
전원 입력 케이블 2 미터 입력 전원 220V ± 22V 50Hz ± 2Hz ​​(외부 리튬 배터리 인버터 전원 공급 장치를 사용할 수 있습니다)
강조하다

0.01ppm SF6 Leakage Detector

,

0.5s SF6 Leakage Detector
메시지를 남겨주세요
제품 설명

SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]


Overview

It adopts the principle of low-voltage ionization in a high-frequency magnetic field. The product has no radiation source, which is safe and reliable. There are no vulnerable parts in the product, and the usage and maintenance cost is low. It is durable. An external lithium battery inverter power supply is required when needed.

Accurately quantify 0.01ppm.



Technical Parameters:

Measurement Range

0.01ppm - 10000ppm(v)

Measurement Accuracy

0.01ppm(v)

Minimum Resolution

0.01ppm(v)

Recovery Time from "Poisoning"

≤10 seconds in an environment of 99.99% SF6
1 second in an environment of 10% SF6

Response Time

≤0.5 seconds for 10ppm
≤1 second for 1ppm

Indication Method

Direct display of ppm on the touch screen with a resolution of 0.01ppm; for example, 99.99ppm
LCD digital display of the detector: The higher the leakage concentration, the greater the digital change;
Buzzer prompt: The higher the leakage concentration, the greater the sound frequency change of the buzzer

Gas and Electric Integrated Hose of the Detector

Standard length is 3 meters (Can be customized as required, up to 10 meters)

Power Input Cable

2 meters

Input Power

220V±22V 50Hz±2Hz (External lithium battery inverter power supply is available)

Ambient Temperature

5℃ - 45℃

Ambient Humidity

≤85%

Power

≤100W

Net Weight of the Whole Machine

Detector: 1.2Kg
Main unit: 7Kg

External Dimensions of the Main Unit

310×168×200mm

Outer Packaging

Aluminum alloy anti-collision box

Gross Weight

12Kg

External Dimensions of the Aluminum Alloy Box

370*320*270mm
