[KS30-CS] SF6 Gas Tester: Constant-Temperature Adiabatic Design, Dew Point Testing & High Accuracy for Power/Chemical Sectors

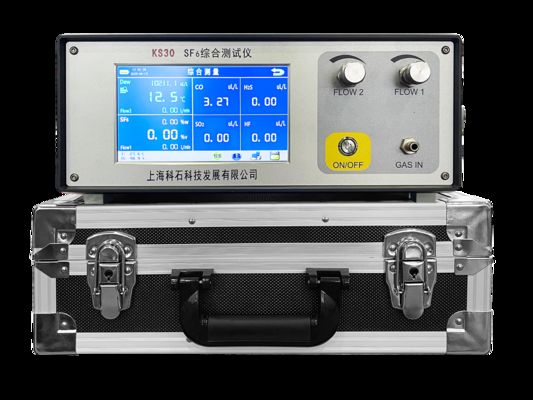

큰 이미지 : [KS30-CS] SF6 Gas Tester: Constant-Temperature Adiabatic Design, Dew Point Testing & High Accuracy for Power/Chemical Sectors

제품 상세 정보:

원래 장소:	상하이
브랜드 이름:	KSTONE
인증:	ISO9001
모델 번호:	KS30-C

결제 및 배송 조건:

가격:	$12000-$25000
포장 세부 사항:	상자 / 나무 상자
배달 시간:	10 일
지불 조건:	t/t
공급 능력:	100 set/y

상세 제품 설명

순도 측정 범위 ::	0~100%	측정 정확도:	± 0.5 ℃
해결:	0.01%	이슬점 범위:	-80 + - +20 ℃
수분 범위:	0.05-23100 μl/L	측정 응답 시간 (+20 ℃):	-60 → → 20 ℃ 5s [30S]; 20 0 → -60 ℃ 10s [300s]
반복성:	±0.2C

[KS30-CS] SF6 Gas Tester: Constant-Temperature Adiabatic Design, Dew Point Testing & High Accuracy for Power/Chemical Sectors

The KS30-CS SF6 gas analyzer adopts a constant-temperature and adiabatic design, which can reduce the impact of sample gas temperature and ambient humidity, and improve measurement accuracy. It is mainly used to measure the SF6 gas purity (volume/mass percentage) of mixed gases including SF6 & air and SF6 & N2. By the same token, products of this series can also be used for purity measurement of other types of gases, such as H2 & N2 mixtures. This equipment is also equipped with a dew point testing function (for the purity measurement of other gas types, the type of mixed gas must be specified before purchase).

The SF6 gas analyzer can be widely used in fields such as electric power, chemical industry, metallurgy, iron and steel, and gas industry, for analyzing gas purity and conducting dew point tests.

Functional Features

Long-life detection module
High accuracy and good repeatability
Built-in pressure maintaining valve and electronic flowmeter
Measurement results not affected by ambient temperature
Fast measurement response speed
Color touch screen control and graphical interface for easier operation

Parameter Category	Specific Parameters
Purity	Measurement range: 0～100% Measurement accuracy: ±0.5% (±0.2% within a certain range) Resolution: 0.01%
Dew Point	Dew point range: -80℃ — +20℃ Measurement accuracy: ±0.5℃ Moisture range: 0.05—23100 μL/L Measurement response time (+20℃): -60℃→20℃ 5S[30s]; 20℃→-60℃ 10S[300S] Repeatability: ±0.2℃ Resolution: Dew point: 0.1℃; Moisture: 0.1ppm (100ppm～1000ppm), 0.01ppm(10ppm～100ppm)
Sample Gas Flow	0.2±30%L/min
Sample Gas Pressure	≤10bar
Response Time	≤30s
Environmental Conditions	Temperature: -20℃～+50℃; Humidity: 5～95%RH
Working Power Supply	Lithium battery power supply, 100～240AC, 50/60HZ, AC/DC dual-use
Dimensions	414333177mm
Weight	3Kg
